Self-Healing Coatings for Superior Oil Pipeline Protection

By Faysal Fayez Eliyan, PhD | Reviewed by Raghvendra GopalCheckmark
Published: February 2, 2025 | Last updated: February 3, 2025
Key Takeaways

Advances in self-healing coating technology can offer breakthrough levels of oil pipeline protection.

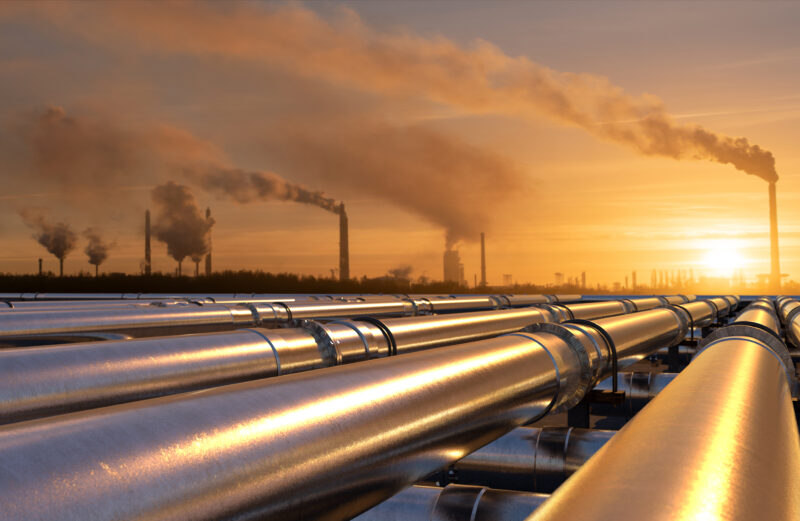

Self-healing coatings represent a revolutionary preventive step against corrosion in the oil pipeline sector.
Self-healing coatings represent a revolutionary preventive step against corrosion in the oil pipeline sector. (Source: Mike Mareen / iStock)

Oil pipelines are vital arteries of global energy infrastructure, transporting massive volumes of oil over vast distances to meet the world’s energy demands. However, these essential conduits face a relentless adversary: corrosion. Corrosion in oil pipelines can lead to severe consequences, including leaks, ruptures, and environmental hazards. Thus, safeguarding pipeline integrity against corrosion is paramount for safe and efficient oil transportation.

Advertisement

Traditional corrosion protection methods, such as sacrificial anodes and coatings, have been employed with varying degrees of success. However, they often require regular maintenance and may not provide comprehensive protection against corrosion. In recent years, self-healing coatings have emerged as a promising solution to address the shortcomings of conventional methods.

The concept of self-healing coatings revolves around the coating’s ability to autonomously repair and re-establish its protective properties when damaged. This inherent capability allows the coating to continuously defend against corrosion, enhancing the longevity and reliability of oil pipelines.

Advertisement

This technical article explores self-healing coatings for corrosion protection in oil pipelines. It outlines the mechanisms behind these coatings’ remarkable self-repairing abilities and examines their potential to revolutionize the industry by significantly reducing maintenance costs and downtime, while ensuring the safety and integrity of oil pipelines. Moreover, it explores the latest advancements in self-healing coating technologies and the challenges to overcome in order to fully embrace these innovative solutions.

With increasing demands for safer and more sustainable pipeline infrastructure, the study of self-healing coatings represents a significant step forward in mitigating the impacts of corrosion and reinforcing the critical role of oil pipelines in the global energy landscape.

Understanding Corrosion Mechanisms in Oil Pipelines

In the realm of oil pipelines, corrosion stands as a formidable adversary, threatening the structural integrity and long-term viability of these crucial conduits that transport oil across long distances. Corrosion manifests in various forms:

Advertisement
  • Uniform corrosion is one of the common types, spreading evenly across the pipeline’s surface. The corrosive nature of the transported oil and the surrounding environmental conditions drive this kind of corrosion.
  • Another worrisome type is pitting corrosion, characterized by localized pits or holes on the pipeline’s surface. Local variations in the metal composition or the presence of specific corrosive agents trigger pitting corrosion.
  • Additionally, crevice corrosion poses a risk, lurking in small gaps or crevices of the pipeline. It’s commonly found at welds, flanges, and fittings, where corrosive agents become trapped and initiate this type of corrosion process.

Internal Factors

Several factors inherent in the pipeline environment influence the complexity of corrosion. The presence of water within the transported oil, acting as an electrolyte, promotes electrochemical reactions and accelerates corrosion rates. Elevated temperatures and pressures in pipelines can intensify corrosion, particularly when those higher temperatures aggravate crude oil’s aggressive nature. Oxygen and sulfur compounds present in the oil can significantly impact corrosion rates, with oxygen supporting electrochemical reactions and sulfur compounds contributing to sulfide stress cracking, leading to further degradation of the pipeline’s integrity.

External Factors

Factors like soil composition and moisture content around buried pipelines, as well as marine environments with high salt content, add to the complexity of corrosion challenges. Understanding these multifaceted corrosion mechanisms is essential, as corrosion can have severe consequences in terms of safety, environmental impact, and maintenance costs. Corrosion-induced structural weaknesses in pipelines can result in leaks—and in extreme cases, ruptures. These in turn lead to environmental hazards, disruptions in energy supplies, and safety risks. The economic repercussions are also significant, with corrosion-related failures necessitating costly repairs, maintenance, and potential shutdowns. Furthermore, prolonged downtime and loss of products can incur substantial financial losses for pipeline operators and consumers alike. Moreover, corrosion-related leaks can lead to environmental contamination of soil and water bodies. This poses risks to ecosystems and requires extensive restoration efforts.

Advertisement
Oil pipelines in marine environments are particularly susceptible to corrosion.

Oil pipelines in marine environments are particularly susceptible to corrosion. (Source: Gri-spb/iStock)

Considering these challenges, there’s a growing interest in exploring innovative solutions like self-healing coatings to protect oil pipelines from corrosion. The unique properties of self-healing coatings offer the potential for continuous protection, reducing maintenance costs and mitigating the economic and environmental impacts of corrosion-related incidents. By comprehending the mechanisms and consequences of corrosion, we can pave the way for more robust and sustainable corrosion protection strategies, thereby ensuring the continued reliability and safety of oil pipelines in our global energy infrastructure.

The Concept of Self-Healing Coatings

Self-healing coatings represent a paradigm shift in corrosion protection strategies, offering a groundbreaking approach to tackle the persistent challenges faced by oil pipelines. These advanced coatings possess inherent capabilities to autonomously repair and restore their protective properties, effectively combating the deleterious effects of corrosion.

At the heart of self-healing coatings lie ingenious mechanisms designed to detect and respond to damage. Active agents incorporated into the coating formulation, such as inhibitors and encapsulated healing agents, play a pivotal role in this process. In the presence of corrosive agents, these active agents act as sentinels. They sense and neutralize the corrosive elements before they can cause significant harm to the underlying pipeline material. Moreover, self-healing coatings have triggering mechanisms that prompt the release and activation of healing agents when damage occurs. Various stimuli can trigger this activation process: changes in pH levels, temperature fluctuations, or exposure to moisture. This ensures that the healing response begins quickly.

Studies on Self-Healing Coatings

The performance and effectiveness of self-healing coatings are paramount, particularly in the demanding environments where oil pipelines operate. Extensive laboratory testing methods are employed to evaluate the coatings’ abilities to withstand harsh conditions, including simulated corrosive environments and mechanical stress. Furthermore, scientists conduct real-world applications and case studies to assess how self-healing coatings fare under the actual operating conditions of oil pipelines.

Continuous research and development efforts have fueled progress in self-healing coating technologies. Nanotechnology, in particular, has played a pivotal role in enhancing the capabilities of self-healing coatings. Nanoparticles can be integrated into the coating matrix to reinforce its barrier properties and provide additional protection against corrosion. Furthermore, researchers have explored the synergy of self-healing coatings with other corrosion protection methods, such as sacrificial anodes and cathodic protection, to harness their combined benefits and provide a comprehensive defense against corrosion.

Do the Pros Outweigh the Cons?

As with any transformative technology, self-healing coatings come with their challenges and limitations:

  • Environmental concerns may arise due to potential biodegradation issues or the release of healing agents into the surroundings. They would require thorough assessments of potential impacts.
  • The cost implications (including the cost-benefit analysis) of implementing self-healing coatings on a large scale need careful consideration. However, their potential for reducing maintenance and repair expenses (long-term savings) could outweigh the initial investment.
  • The compatibility of self-healing coatings with different pipeline materials and operating conditions must be thoroughly examined to ensure their widespread and effective adoption in the industry.

Despite these challenges, the prospects for self-healing coatings in safeguarding oil pipelines against corrosion are incredibly promising. The ability of these coatings to self-repair and continuously protect pipelines offers a revolutionary approach to enhancing pipeline integrity, minimizing maintenance requirements, and ensuring uninterrupted and safe oil transportation. As research and development efforts continue, collaborative partnerships between industry stakeholders and researchers can accelerate the adoption of self-healing coatings. This will usher in a new era of corrosion protection in the oil pipeline sector.

Key Components and Functionality of Self-Healing Coatings

The successful implementation of self-healing coatings hinges on the interplay of key components and their inherent functionality, which enables these coatings to autonomously repair and reinforce their protective properties. As noted before, at the core of self-healing coatings are active agents that actively participate in the healing process. These agents, such as inhibitors and encapsulated healing agents, act as intelligent defenders, sensing and reacting to corrosive elements within the pipeline environment:

  1. Inhibitors form a protective barrier on the surface of the pipeline material, thwarting the corrosive attack by neutralizing aggressive species.
  2. Encapsulated healing agents are designed to be dormant within the coating until damage occurs. Once the coating is compromised, the encapsulated agents are released, flooding the damaged area and initiating the repair process. The selection and formulation of these active agents are critical, as they determine the efficiency and responsiveness of the self-healing coatings.

The Science Behind Self-Healing

A typical self-healing additive is made of a liquid healing agent, which contains polymer precursors. These are based on epoxy, siloxane, and/or alkyd chemistries, and are enclosed within microcapsules that measure 10 to 20 µm (0.4 to 0.8 mils) in diameter and that have a polymeric shell wall. These microcapsules are created using an oil-in-water emulsion process and then separated through spray-drying. Once prepared, they are added to the coating formulation along with dry pigments and other additives.

The way the coating repairs itself depends on the type and size of the damage. The healing agent plugs tiny cracks and seals larger cracks or edges of more severe damage. In a regular coating, damage exposes the material underneath, which quickly begins to corrode. This corrosion spreads beneath the coating, causing it to peel away. However, in a self-healing coating, damage breaks the microcapsules, releasing the healing agent directly into the damaged area. The agent then hardens, sealing the edges and preventing further deterioration.

Failure of a regular coating of a crude oil pipeline.

Failure of regular coatings on crude oil pipelines. (Source: abadonian/iStock)

Additional Elements Involved in Pipeline Protection

As mentioned earlier, the functionality of self-healing coatings is augmented by their triggering mechanisms. These mechanisms activate the healing agents in response to specific stimuli. For instance:

This adaptability allows the coatings to respond promptly to damage and mitigate the propagation of corrosion, thereby extending the pipeline’s lifespan.

Furthermore, protective layers and the adhesion properties of self-healing coatings are instrumental in providing durable and long-lasting corrosion protection. The coatings must exhibit excellent adhesion to the pipeline’s surface to form a robust bond, ensuring that they stay in place under the rigors of pipeline operations.

Moreover, multi-layered self-healing coatings, with each layer serving a distinct function, can offer enhanced protection. For instance, a primer layer may provide excellent adhesion to the substrate, followed by a corrosion-resistant layer containing the active healing agents, and finally a top coat for additional barrier protection. The synergy between these layers enhances the overall effectiveness and resilience of the self-healing coatings.

As self-healing coating technologies continue to advance, researchers are exploring innovative materials and techniques, such as nanotechnology, to further augment the functionality of these coatings. Moreover, advancements in material science have led to the development of stimuli-responsive nanomaterials, which can trigger the healing process more precisely, leading to improved performance.

Evaluating Performance and Effectiveness

The performance and effectiveness of self-healing coatings are critical considerations in determining their suitability for protecting oil pipelines against corrosion. Robust evaluation methodologies are employed to assess the coatings’ ability to withstand harsh and corrosive environments, ensuring they meet the demanding requirements of real-world applications. In laboratory settings, researchers subject the coatings to simulated corrosive conditions, replicating the aggressive environments encountered in oil pipelines. These tests gauge the coatings’ resistance to corrosion, their healing response, and their overall durability under accelerated conditions. Key parameters (corrosion rate, coating adhesion, extent of healing upon damage, etc.) are closely monitored to ascertain the coatings’ performance.

Field performance and case studies also play a pivotal role in evaluating self-healing coatings. Deploying these coatings in actual oil pipeline operations provides invaluable insights into their effectiveness under authentic environmental conditions. Data on corrosion rates, coating performance, and the occurrence of damage over time are collected and analyzed to assess the coatings’ real-world efficacy. Moreover, understanding the practical challenges and benefits of implementing self-healing coatings in operational pipelines aids in refining the technology and enhancing its reliability.

Long-term sustainability and durability considerations are paramount when assessing self-healing coatings. It is vital to evaluate the coatings’ ability to maintain their healing capabilities over extended periods and under continuous exposure to corrosive agents. Researchers examine various factors: the aging of the healing agents, potential degradation of the coating, and its ability to heal multiple times after successive damage events. Ensuring the coatings’ resilience and longevity is crucial for sustainable corrosion protection, reducing the need for frequent maintenance and replacements.

Evaluating self-healing coatings is an ongoing and dynamic process, characterized by continuous research and practical applications. The insights gained from performance assessments drive advancements and improvements, bolstering the coatings’ efficacy in safeguarding oil pipelines against corrosion.

Advancements in Self-Healing Coating Technologies

One notable area of progress is the integration of nanotechnology into self-healing coating formulations. Nanoparticles, with their unique properties, have proven instrumental in enhancing the coatings’ efficiency and durability. As mentioned before, by incorporating nanoparticles into the coating matrix, researchers have achieved improved barrier properties, bolstering the coatings’ resistance to corrosive agents and mechanical stress. Additionally, nanoparticles serve as reservoirs for additional healing agents, prolonging the coatings’ ability to repair damage and providing multiple healing cycles.

The application of stimuli-responsive nanomaterials has also pushed the boundaries of self-healing coatings. These nanomaterials exhibit specific responses to environmental stimuli, such as changes in pH, temperature, or moisture. By leveraging these stimuli, researchers have devised coatings that can tailor their healing response to the prevailing conditions. This optimizes the healing process for enhanced performance. Furthermore, stimuli-responsive coatings enable targeted and on-demand healing, focusing the repair efforts precisely where damage occurs. This minimizes waste and maximizes efficiency.

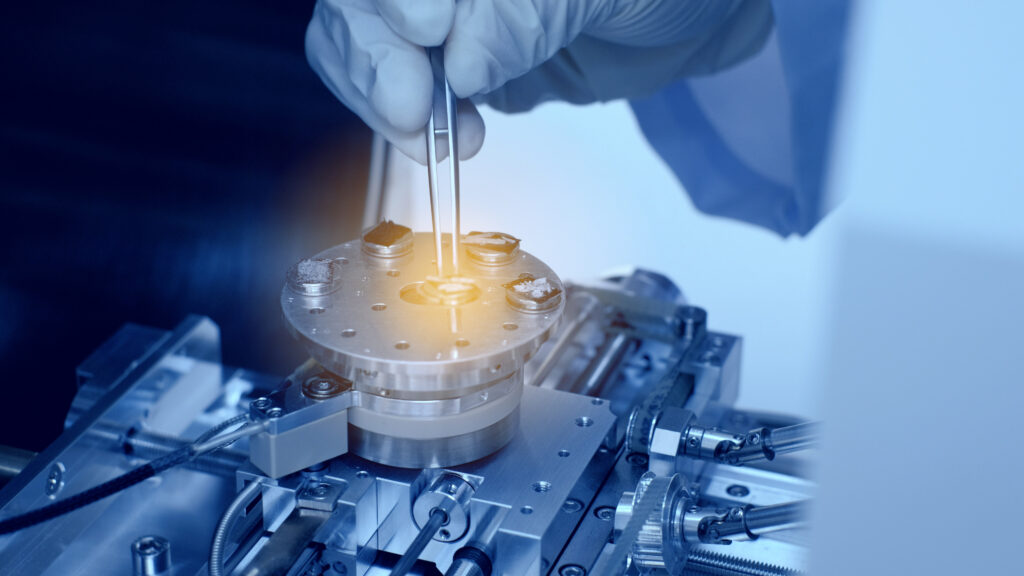

A scientist preparing nanomaterials for scanning in a laboratory.

A scientist preparing nanomaterials for scanning in a laboratory. (Source: Anucha Cheechang / iStock)

The Focus for the Future

As advancements continue, researchers are concentrating on addressing challenges associated with self-healing coatings. Ensuring the long-term sustainability of these coatings is a priority, with a focus on responsible material selection and formulation. Evaluating the environmental impact of healing agents and addressing potential biodegradation concerns are essential to ensure these coatings meet stringent environmental standards. Furthermore, compatibility testing with different pipeline materials and operating conditions remains critical to optimizing the coatings’ performance and adaptability to various scenarios.

As self-healing coating technologies mature and gain traction, collaboration among industry stakeholders, researchers, and regulatory bodies will be key to driving their widespread adoption. Industry partnerships and collaborative initiatives can accelerate the implementation of self-healing coatings, paving the way for transformative corrosion protection strategies in oil pipelines. The prospects for self-healing coatings are bright, with the potential to revolutionize the industry by reducing maintenance costs, extending pipeline lifespan, and ensuring safer and more sustainable energy transportation. As the journey of innovation continues, self-healing coatings will become an integral component in fortifying global energy infrastructure against the relentless threat of corrosion.

Outlook and Adoption by the Industry

As mentioned previously, the prospects for self-healing coatings in the oil pipeline industry are incredibly promising. These coatings can potentially revolutionize corrosion protection strategies and elevate pipeline integrity to new heights. As research and development efforts continue, we can expect self-healing coatings to become more advanced, efficient, and cost-effective. The integration of nanotechnology and stimuli-responsive nanomaterials into coating formulations will enhance their performance, providing more tailored and adaptive healing responses to specific pipeline conditions. Moreover, ongoing collaborations between researchers, industry stakeholders, and regulatory bodies will accelerate the refinement and adoption of these coatings. This will expedite their implementation in real-world pipeline applications.

The transformative impact of self-healing coatings lies in their potential to significantly reduce maintenance costs and downtime associated with corrosion-related issues. By offering continuous protection and autonomous repair capabilities, these coatings can minimize the need for frequent inspections and repairs, leading to substantial cost savings for pipeline operators. Furthermore, an extended pipeline lifespan achieved through effective corrosion protection will contribute to more sustainable energy infrastructure, optimizing resource utilization and reducing environmental impacts.

As industry leaders witness the successes of self-healing coatings in real-world applications and case studies, confidence in their capabilities will grow, driving wider adoption. The proven ability of these coatings to safeguard against corrosion-induced leaks and ruptures will instill trust in pipeline integrity, fostering greater safety and reliability in energy transportation. Embracing self-healing coatings can also enhance public perception and environmental stewardship, as the industry demonstrates its commitment to innovative and sustainable corrosion protection solutions.
